TYT TH-9800 HF / VHF / UHF Walkie Talkie with 800 Channel
...See More
PRIVACY PROTECTED
SECURE CHECKOUT
TYT TH-9800 HF / VHF / UHF Walkie Talkie with 800 Channel
Availability:
In Stock
|
FREE Shipping on Orders Over $20
ships worldwide |
$439.42
Main Features:
Four wave bands for receiving and transmitting: 29 / 50 / 144 / 430 MHz
Wide frequency range: 26 - 33MHz, 47 - 54 MHz, 108 - 135 MHz (AM), 136 - 180 MHz, 320 - 512 MHz, 750 - 950 MHz
Large output power: 50W for HF / VHF, 35W for UHF, there are four power grades to change for every channel
Independent A / B dual-band, dual receiver and full-duplex design
U + V cross-band repeater function
Detachable removable panel and large LCD dual display
800 channels capacity, you can store more useful channels
50 CTCSS / 1024 DCS / DTMF / 2-Tone / 5-Tone signaling, more calling options
Voice encryption function
S / N - 1503A
Parameter:
- Work frequency band:
TX: 26 - 33MHz / 47 - 54 MHz / 136 - 174 MHz / 400 -470 MHz
RX: 26 - 33MHz / 47 - 54 MHz / 108 - 135 MHz / 136 -180 MHz / 320 - 512 MHz / 700 - 950 MHz
- Frequency space: 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50MHz
- Modulation mode: F3E
- Antenna impedance: 50 ohm
- Work voltage: DC 13.8V
- Work current: RX 0.5A TX 8.0A (430MHz), 8.5A (29 / 50 / 144MHz)
- Work temperature: - 20 to 60 degree centigrade
- Frequency stability: + / - 5 ppm
- Middle frequency: 45.05MHz / 450MHz (A), 47.25MHz / 450MHz (B)
- Sensitivity: 0.2 micro volts, 12dB SINAD
- Adjacent channel selectivity: 60dB
- Transmitting power: 50 / 20 / 10 / 5W (29 / 50 / 144MHz), 35 / 20 / 10 / 5W (430MHz)
- Firmware version: TH9800DMV1.00.21
Note: It owns radio transmission equipment type approval certificate
Four wave bands for receiving and transmitting: 29 / 50 / 144 / 430 MHz
Wide frequency range: 26 - 33MHz, 47 - 54 MHz, 108 - 135 MHz (AM), 136 - 180 MHz, 320 - 512 MHz, 750 - 950 MHz
Large output power: 50W for HF / VHF, 35W for UHF, there are four power grades to change for every channel
Independent A / B dual-band, dual receiver and full-duplex design
U + V cross-band repeater function
Detachable removable panel and large LCD dual display
800 channels capacity, you can store more useful channels
50 CTCSS / 1024 DCS / DTMF / 2-Tone / 5-Tone signaling, more calling options
Voice encryption function
S / N - 1503A
Parameter:
- Work frequency band:
TX: 26 - 33MHz / 47 - 54 MHz / 136 - 174 MHz / 400 -470 MHz
RX: 26 - 33MHz / 47 - 54 MHz / 108 - 135 MHz / 136 -180 MHz / 320 - 512 MHz / 700 - 950 MHz
- Frequency space: 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50MHz
- Modulation mode: F3E
- Antenna impedance: 50 ohm
- Work voltage: DC 13.8V
- Work current: RX 0.5A TX 8.0A (430MHz), 8.5A (29 / 50 / 144MHz)
- Work temperature: - 20 to 60 degree centigrade
- Frequency stability: + / - 5 ppm
- Middle frequency: 45.05MHz / 450MHz (A), 47.25MHz / 450MHz (B)
- Sensitivity: 0.2 micro volts, 12dB SINAD
- Adjacent channel selectivity: 60dB
- Transmitting power: 50 / 20 / 10 / 5W (29 / 50 / 144MHz), 35 / 20 / 10 / 5W (430MHz)
- Firmware version: TH9800DMV1.00.21
Note: It owns radio transmission equipment type approval certificate
Brand: TYT
Model Number: TH-9800
Model Number: TH-9800
Package weight: 2.246 kg
Product Dimension: 14.00 x 16.80 x 4.10 cm / 5.51 x 6.61 x 1.61 inches
Package Dimension: 18.00 x 25.00 x 6.00 cm / 7.09 x 9.84 x 2.36 inches
Product Dimension: 14.00 x 16.80 x 4.10 cm / 5.51 x 6.61 x 1.61 inches
Package Dimension: 18.00 x 25.00 x 6.00 cm / 7.09 x 9.84 x 2.36 inches

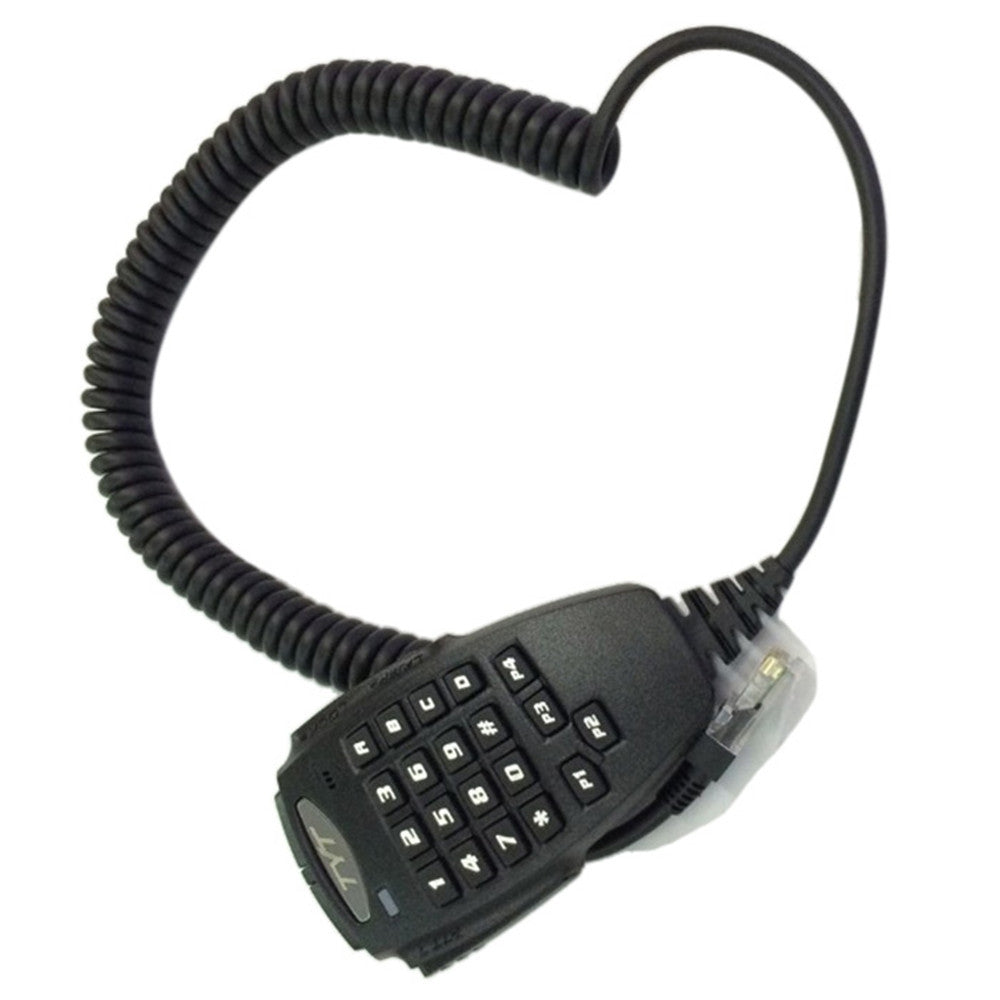

Package Contents: 1 x TYT TH-9800 Walkie Talkie, 1 x Digital Microphone, 1 x Mounting Bracket, 1 x Battery Cable, 1 x Panel Bracket, 1 x A Set of Fuse, 1 x English User Manual
